ISO 2339

Replaces DIN 1

Taper pins

Type B = turned

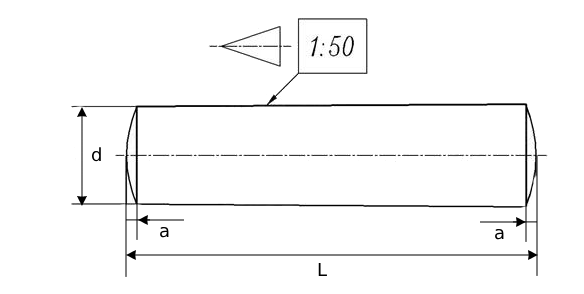

tech-iso2339






Nominal Diameter
d		 Φ0.6 Φ0.8 Φ1 Φ1.2
d max=nominal size (h10) 0.6 0.8 1 1.2
min 0.56 0.76 0.96 1.16
a ≈ 0.08 0.1 0.12 0.16

Nominal Diameter
d		 Φ1.5 Φ2 Φ2.5 Φ3
d max=nominal size (h10) 1.5 2 2.5 3
min 1.46 1.96 2.46 2.96
a ≈ 0.2 0.25 0.3 0.4

Nominal Diameter
d		 Φ4 Φ5 Φ6 Φ8
d max=nominal size (h10) 4 5 6 8
min 3.952 4.952 5.952 7.942
a ≈ 0.5 0.63 0.8 1

Nominal Diameter
d		 Φ10 Φ12 Φ16 Φ20
d max=nominal size (h10) 10 12 16 20
min 9.942 11.93 15.93 19.916
a ≈ 1.2 1.6 2 2.5

Nominal Diameter
d		 Φ25 Φ30 Φ40 Φ50
d max=nominal size (h10) 25 30 40 50
min 24.916 29.916 39.9 49.9
a ≈ 3 4 5 6.3



*not standardized, reference values


All information is strictly informative
