Thread Repair Insert – Imperial (Inch) Stainless Steel

UNF Threaded Inserts Specifications
UNC Threaded Inserts Specifications
tech drawing v-coil banner

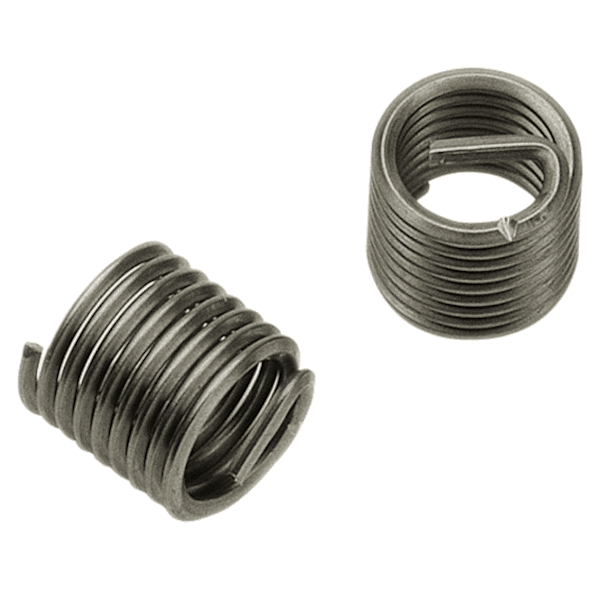

V-COIL Wire Thread Insert Type S
Stainless UNC          		 VCOIL_Thread_Repair_Insert_600x600.png?w=80
Part# Size Length Pitch Desc Pkg. Stocked
OnlyAll
K301-024-0000 No.2 inch 2.18 Coarse 100 No(1-2weeks)
K301-025-0000 No.2 inch 3.18 Coarse 100 No(1-2weeks)
K301-026-0000 No.2 inch 4.37 Coarse 100 No(1-2weeks)
K301-027-0000 No.2 inch 5.46 Coarse 100 No(1-2weeks)
K301-028-0000 No.2 inch 6.35 Coarse 100 No(1-2weeks)
K301-044-0000 No.4 inch 2.84 Coarse 100 No(1-2weeks)
K301-045-0000 No.4 inch 4.27 Coarse 100 No(1-2weeks)
K301-046-0000 No.4 inch 5.69 Coarse 100 No(1-2weeks)
K301-047-0000 No.4 inch 7.11 Coarse 100 No(1-2weeks)
K301-048-0000 No.4 inch 8.53 Coarse 100 No(1-2weeks)
K301-054-0000 No.5 inch 3.18 Coarse 100 No(1-2weeks)
K301-055-0000 No.5 inch 4.76 Coarse 100 No(1-2weeks)
K301-056-0000 No.5 inch 6.35 Coarse 100 No(1-2weeks)
K301-057-0000 No.5 inch 7.94 Coarse 100 No(1-2weeks)
K301-058-0000 No.5 inch 9.53 Coarse 100 No(1-2weeks)
K301-064-0000 No.6 inch 3.5 Coarse 100 No(1-2weeks)
K301-065-0000 No.6 inch 5.95 Coarse 100 Yes
K301-066-0000 No.6 inch 7.14 Coarse 100 Yes
K301-067-0000 No.6 inch 8.76 Coarse 100 No(1-2weeks)
K301-068-0000 No.6 inch 10.51 Coarse 100 No(1-2weeks)
K301-084-0000 No.8 inch 4.37 Coarse 100 Yes
K301-085-0000 No.8 inch 6.35 Coarse 100 Yes
K301-086-0000 No.8 inch 8.33 Coarse 100 Yes
K301-087-0000 No.8 inch 10.32 Coarse 100 Yes
K301-088-0000 No.8 inch 12.7 Coarse 100 No(1-2weeks)
K301-104-0000 No.10 inch 4.76 Coarse 100 Yes
K301-105-0000 No.10 inch 7.14 Coarse 100 Yes
K301-106-0000 No.10 inch 9.53 Coarse 100 Yes
K301-107-0000 No.10 inch 11.91 Coarse 100 Yes
K301-108-0000 No.10 inch 14.48 Coarse 100 No(1-2weeks)
K301-124-0000 No.12 inch 5.48 Coarse 100 No(1-2weeks)
K301-125-0000 No.12 inch 8.23 Coarse 100 No(1-2weeks)
K301-126-0000 No.12 inch 11.11 Coarse 100 No(1-2weeks)
K301-127-0000 No.12 inch 13.71 Coarse 100 No(1-2weeks)
K301-128-0000 No.12 inch 16.46 Coarse 100 No(1-2weeks)
K301-144-0000 1/4 inch 6.35 Coarse 100 Yes
K301-145-0000 1/4 inch 9.53 Coarse 100 Yes
K301-146-0000 1/4 inch 12.7 Coarse 100 Yes
K301-147-0000 1/4 inch 15.88 Coarse 100 Yes
K301-148-0000 1/4 inch 19.05 Coarse 100 No(1-2weeks)
K301-164-0000 5/16 inch 7.94 Coarse 100 Yes
K301-165-0000 5/16 inch 11.91 Coarse 100 Yes
K301-166-0000 5/16 inch 15.88 Coarse 100 Yes
K301-167-0000 5/16 inch 19.84 Coarse 100 Yes
K301-168-0000 5/16 inch 23.8 Coarse 100 No(1-2weeks)
K301-184-0000 3/8 inch 9.53 Coarse 100 Yes
K301-185-0000 3/8 inch 14.29 Coarse 100 Yes
K301-186-0000 3/8 inch 19.05 Coarse 100 Yes
K301-187-0000 3/8 inch 23.81 Coarse 100 Yes
K301-188-0000 3/8 inch 28.58 Coarse 100 No(1-2weeks)
K301-204-0000 7/16 inch 11.11 Coarse 100 Yes
K301-205-0000 7/16 inch 16.67 Coarse 100 Yes
K301-206-0000 7/16 inch 22.23 Coarse 100 Yes
K301-207-0000 7/16 inch 27.78 Coarse 100 No(1-2weeks)
K301-208-0000 7/16 inch 33.34 Coarse 100 No(1-2weeks)
K301-244-0000 1/2 inch 12.7 Coarse 100 Yes
K301-245-0000 1/2 inch 19.05 Coarse 100 Yes
K301-246-0000 1/2 inch 25.4 Coarse 100 Yes
K301-247-0000 1/2 inch 31.75 Coarse 100 Yes
K301-248-0000 1/2 inch 38.1 Coarse 100 No(1-2weeks)
K301-254-0000 9/16 inch 14.29 Coarse 50 Yes
K301-255-0000 9/16 inch 21.43 Coarse 50 Yes
K301-256-0000 9/16 inch 28.58 Coarse 50 No(1-2weeks)
K301-258-0000 9/16 inch 42.86 Coarse 50 No(1-2weeks)
K301-264-0000 5/8 inch 15.88 Coarse 50 Yes
K301-265-0000 5/8 inch 23.81 Coarse 50 Yes
K301-266-0000 5/8 inch 31.75 Coarse 50 Yes
K301-267-0000 5/8 inch 39.69 Coarse 50 Yes
K301-268-0000 5/8 inch 47.63 Coarse 50 No(1-2weeks)
K301-284-0000 3/4 inch 19.05 Coarse 25 Yes
K301-285-0000 3/4 inch 28.58 Coarse 25 Yes
K301-286-0000 3/4 inch 38.1 Coarse 25 Yes
K301-287-0000 3/4 inch 47.63 Coarse 25 Yes
K301-288-0000 3/4 inch 57.15 Coarse 25 No(1-2weeks)
K301-304-0000 7/8 inch 22.23 Coarse 10 Yes
K301-305-0000 7/8 inch 33.34 Coarse 10 Yes
K301-306-0000 7/8 inch 44.45 Coarse 10 No(1-2weeks)
K301-307-0000 7/8 inch 55.56 Coarse 10 No(1-2weeks)
K301-308-0000 7/8 inch 66.68 Coarse 10 No(1-2weeks)
K301-344-0000 1 inch 25.4 Coarse 10 Yes
K301-345-0000 1 inch 38.1 Coarse 10 Yes
K301-346-0000 1 inch 50.8 Coarse 10 Yes
K301-347-0000 1 inch 63.5 Coarse 10 Yes
K301-348-0000 1 inch 76.2 Coarse 10 Yes
K301-365-0000 1.1/8 inch 42.86 Coarse 5 Yes
K301-385-0000 1.1/4 inch 47.63 Coarse 5 Yes
K301-405-0000 1.3/8 inch 52.39 Coarse 5 No(1-2weeks)
K301-445-0000 1.1/2 inch 57.15 Coarse 5 No(1-2weeks)
V-COIL Wire Thread Insert Type S
Stainless UNF
Part# Size Length Pitch Desc Pkg. Stocked
OnlyAll
K301-044-0048 No.4 inch 2.84 Fine 100 No(1-2weeks)
K301-045-0048 No.4 inch 4.27 Fine 100 No(1-2weeks)
K301-046-0048 No.4 inch 5.69 Fine 100 No(1-2weeks)
K301-047-0048 No.4 inch 7.11 Fine 100 No(1-2weeks)
K301-048-0048 No.4 inch 8.53 Fine 100 No(1-2weeks)
K301-064-0040 No.6 inch 3.5 Fine 100 No(1-2weeks)
K301-065-0040 No.6 inch 5.95 Fine 100 Yes
K301-066-0040 No.6 inch 7.14 Fine 100 Yes
K301-067-0040 No.6 inch 8.76 Fine 100 No(1-2weeks)
K301-068-0040 No.6 inch 10.51 Fine 100 No(1-2weeks)
K301-084-0036 No.8 inch 4.16 Fine 100 No(1-2weeks)
K301-085-0036 No.8 inch 6.35 Fine 100 Yes
K301-086-0036 No.8 inch 8.33 Fine 100 No(1-2weeks)
K301-087-0036 No.8 inch 10.41 Fine 100 No(1-2weeks)
K301-088-0036 No.8 inch 12.7 Fine 100 No(1-2weeks)
K301-104-0032 No.10 inch 4.76 Fine 100 Yes
K301-105-0032 No.10 inch 7.14 Fine 100 Yes
K301-106-0032 No.10 inch 9.53 Fine 100 Yes
K301-107-0032 No.10 inch 11.91 Fine 100 Yes
K301-108-0032 No.10 inch 14.48 Fine 100 No(1-2weeks)
K301-144-0028 1/4 inch 6.35 Fine 100 Yes
K301-145-0028 1/4 inch 9.53 Fine 100 Yes
K301-146-0028 1/4 inch 12.7 Fine 100 Yes
K301-147-0028 1/4 inch 15.88 Fine 100 No(1-2weeks)
K301-148-0028 1/4 inch 19.05 Fine 100 No(1-2weeks)
K301-164-0024 5/16 inch 7.94 Fine 100 Yes
K301-165-0024 5/16 inch 11.91 Fine 100 Yes
K301-166-0024 5/16 inch 15.88 Fine 100 No(1-2weeks)
K301-167-0024 5/16 inch 19.83 Fine 100 No(1-2weeks)
K301-168-0024 5/16 inch 23.8 Fine 100 No(1-2weeks)
K301-184-0024 3/8 inch 9.53 Fine 100 Yes
K301-185-0024 3/8 inch 14.29 Fine 100 Yes
K301-186-0024 3/8 inch 19.05 Fine 100 No(1-2weeks)
K301-187-0024 3/8 inch 23.8 Fine 100 No(1-2weeks)
K301-188-0024 3/8 inch 28.58 Fine 100 No(1-2weeks)
K301-204-0020 7/16 inch 11.11 Fine 100 Yes
K301-205-0020 7/16 inch 16.67 Fine 100 Yes
K301-206-0020 7/16 inch 22.23 Fine 100 No(1-2weeks)
K301-207-0020 7/16 inch 27.78 Fine 100 No(1-2weeks)
K301-208-0020 7/16 inch 33.34 Fine 100 No(1-2weeks)
K301-244-0020 1/2 inch 12.7 Fine 100 Yes
K301-245-0020 1/2 inch 19.05 Fine 100 Yes
K301-246-0020 1/2 inch 25.4 Fine 100 No(1-2weeks)
K301-247-0020 1/2 inch 31.75 Fine 100 No(1-2weeks)
K301-248-0020 1/2 inch 38.1 Fine 100 No(1-2weeks)
K301-257-0000 9/16 inch 38.25 Coarse 50 No(1-2weeks)
K301-254-0018 9/16 inch 14.29 Fine 50 Yes
K301-255-0018 9/16 inch 21.43 Fine 50 Yes
K301-256-0018 9/16 inch 28.58 Fine 50 No(1-2weeks)
K301-257-0018 9/16 inch 35.72 Fine 50 Yes
K301-258-0018 9/16 inch 42.86 Fine 50 No(1-2weeks)
K301-264-0018 5/8 inch 15.88 Fine 50 Yes
K301-265-0018 5/8 inch 23.81 Fine 50 Yes
K301-266-0018 5/8 inch 31.75 Fine 50 Yes
K301-267-0018 5/8 inch 39.69 Fine 50 No(1-2weeks)
K301-268-0018 5/8 inch 47.63 Fine 50 Yes
K301-284-0016 3/4 inch 19.05 Fine 25 Yes
K301-285-0016 3/4 inch 28.58 Fine 25 Yes
K301-286-0016 3/4 inch 38.1 Fine 25 Yes
K301-287-0016 3/4 inch 47.63 Fine 25 No(1-2weeks)
K301-288-0016 3/4 inch 57.15 Fine 25 No(1-2weeks)
K301-304-0014 7/8 inch 22.23 Fine 10 Yes
K301-305-0014 7/8 inch 33.34 Fine 10 Yes
K301-306-0014 7/8 inch 44.45 Fine 10 No(1-2weeks)
K301-307-0014 7/8 inch 55.56 Fine 10 No(1-2weeks)
K301-308-0014 7/8 inch 66.68 Fine 10 No(1-2weeks)
K301-344-0012 1 inch 25.4 Fine 10 Yes
K301-345-0012 1 inch 38.1 Fine 10 Yes
K301-346-0012 1 inch 50.8 Fine 10 Yes
K301-347-0012 1 inch 63.5 Fine 10 No(1-2weeks)
K301-348-0012 1 inch 76.2 Fine 10 No(1-2weeks)
K301-365-0012 1.1/8 inch 42.86 Fine 5 Yes
K301-385-0012 1.1/4 inch 47.63 Fine 5 Yes
K301-405-0012 1.3/8 inch 52.39 Fine 5 No(1-2weeks)
K301-445-0012 1.1/2 inch 57.15 Fine 5 No(1-2weeks)
V-COIL Wire Thread Insert Type S
Stainless UNx8
Part# Size Length Pitch Desc Pkg. Stocked
OnlyAll
K301-365-0000-U8 1.1/8 42.86 Coarse 5 No(1-2weeks)
K301-385-0000-U8 1.1/4 47.63 Coarse 5 No(1-2weeks)
K301-405-0000-U8 1.3/8 52.39 Coarse 5 No(1-2weeks)
K301-445-0000-U8 1.1/2 57.15 Coarse 5 No(1-2weeks)
K301-465-0000-U8 1.5/8 61.91 Coarse 5 No(1-2weeks)
K301-485-0000-U8 1.3/4 66.68 Coarse 5 No(1-2weeks)
K301-495-0000-U8 1.7/8 71.44 Coarse 5 No(1-2weeks)
K301-505-0000-U8 2" 76.2 Coarse 5 No(1-2weeks)
K301-545-0000-U8 2.1/2 142.88 Coarse 1 No(1-2weeks)
K301-585-0000-U8 3" 114.3 Coarse 1 No(1-2weeks)
