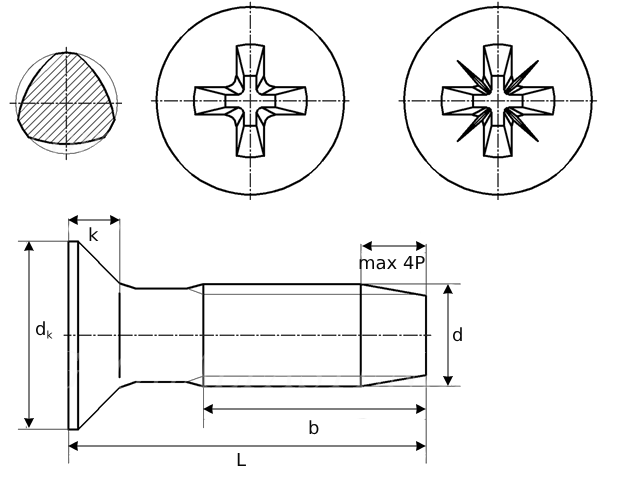

DIN 7500M

Cross recessed countersunk head thread rolling screws

With metric thread and Pozidriv cross recess Z
Type M = countersunk head acc.to DIN 965

tech-din7500M




Thread Size
d		 M2 M2.5 M3
P Pitch 0.4 0.45 0.5
b min 16 18 19
dk max 3.8 4.7 5.5
min 3.5 4.4 5.3
k max 1.2 1.5 1.65
Socket No. 1 1 1

Thread Size
d		 (M3.5) M4 M5
P Pitch 0.6 0.7 0.8
b min 20 22 25
dk max 6.5 7.5 9.2
min 6.14 7.14 8.84
k max 1.93 2.2 2.5
Socket No. 2 2 2

Thread Size
d		 M6 M8 M10
P Pitch 1 1.25 1.5
b min 28 34 40
dk max 11 14.5 18
min 10.57 14.07 17.57
k max 3 4 5
Socket No. 3 4 4



All information is strictly informative
