DIN 7500C

Cross recessed pan head thread rolling screws

With metric thread and Pozidriv cross recess Z
Type C = pan head acc.to DIN 7985

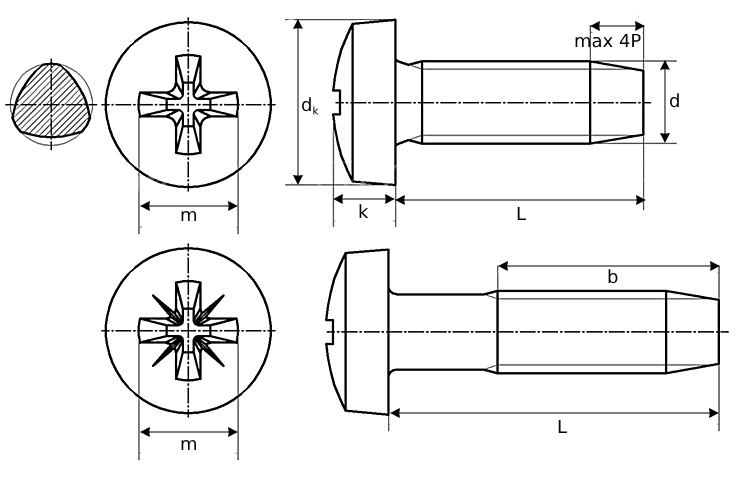

tech-din7500C




Screw Thread
d		 M2 M2.5 M3
P Pitch 0.4 0.45 0.5
b min 16 18 19
dk max 4 5 6
min 3.7 4.7 5.7
k max 1.72 2.12 2.52
min 1.48 1.88 2.28
Socket No. 1 1 1
m Form H 2.5 2.7 3.1
Form Z 2.4 2.6 3

Screw Thread
d		 (M3.5) M4 M5
P Pitch 0.6 0.7 0.8
b min 20 22 25
dk max 7 8 10
min 6.64 7.64 9.64
k max 2.82 3.25 3.95
min 2.58 2.95 3.65
Socket No. 2 2 2
m Form H 4.2 4.6 5.3
Form Z 4 4.3 5

Screw Thread
d		 M6 M8 M10
P Pitch 1 1.25 1.5
b min 28 34 40
dk max 12 16 20
min 11.57 15.57 19.48
k max 4.75 6.15 7.68
min 4.45 5.85 7.32
Socket No. 3 4 4
m Form H 6.8 9 10.2
Form Z 6.7 8.8 9.9



All information is strictly informative
