DIN 6797V

Toothed Lock Washer - Type V

Countersunk

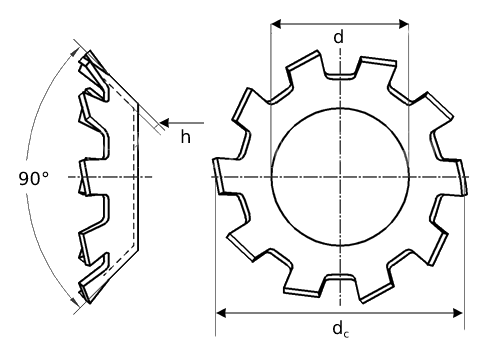

tech-din6797v






Size 2.2 2.7 3.2
d min=nominal size 2.2 2.7 3.2
max 2.34 2.84 3.38
dc ≈ 4.2 5.1 6
h 0.2 0.2 0.2
Number of Teeth min 6 6 6
For Nominal Thread Diameter M2 M2.5 M3
per 1000 units ≈ kg 0.02 0.025 0.025

Size 3.7 4.3 5.3
d min=nominal size 3.7 4.3 5.3
max 3.88 4.48 5.48
dc ≈ 7 8 9.8
h 0.25 0.25 0.3
Number of Teeth min 6 8 8
For Nominal Thread Diameter M3.5 M4 M5
per 1000 units ≈ kg 0.04 0.05 0.12

Size 6.4 8.4 10.5
d min=nominal size 6.4 8.4 10.5
max 6.62 8.62 10.77
dc ≈ 11.8 15.3 19
h 0.4 0.4 0.5
Number of Teeth min 10 10 10
For Nominal Thread Diameter M6 M8 M10
per 1000 units ≈ kg 0.2 0.4 0.7

Size 13 15 17
d min=nominal size 13 15 17
max 13.27 15.27 17.27
dc ≈ 23 26.2 30.2
h 0.5 0.6 0.6
Number of Teeth min 10 12 12
For Nominal Thread Diameter M12 M14 M16
per 1000 units ≈ kg 1.2 1.3 1.3



*acc. to DIN 6797: 1971


All information is strictly informative
