DIN 6340

Washer for clamping devices

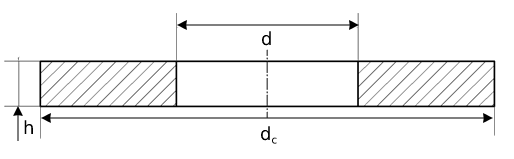

tech-din6340




For thread diameter M6 M8 M10 M12
d min=nominal size (H14) 6.4 8.4 10.5 13
max 6.76 8.76 10.93 13.43
dc max=nominal size (h14) 17 23 28 35
min 16.57 22.48 27.48 34.38
h 3 4 4 5
per 1000 units ≈ kg 4.6 11.3 16.6 32.5

For thread diameter M16 M20 M24 M30
d min=nominal size (H14) 17 21 25 31
max 17.43 21.52 25.52 31.62
dc max=nominal size (h14) 45 50 60 68
min 44.38 49.38 59.26 67.26
h 6 6 8 10
per 1000 units ≈ kg 64.3 76 147 226



All information is strictly informative
