DIN 467

Knurled nuts - Low type

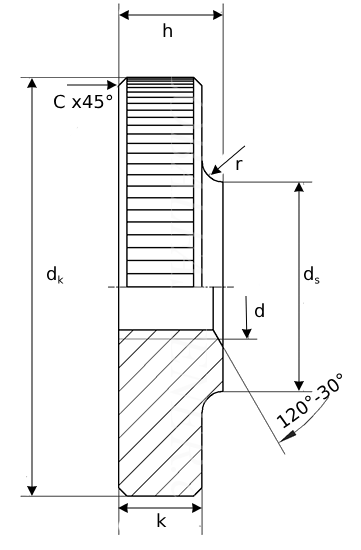

tech-din467






Thread Size
d		 M1 M1.2 M1.4
P Pitch 0.25 0.25 0.3
c ≈ ① ① ①
dk Nominal Size 5.5 6 7
max 5.74 6.24 7.29
min 5.26 5.76 6.71
ds max=nominal size 2.8 3 3.5
min 2.55 2.75 3.2
h max=nominal size 2 2 2.5
min 1.75 1.75 2.25
k max=nominal size 1.5 1.5 2
min 1.25 1.25 1.75
r 0.5 0.5 0.5
Knurling division 0.5 0.5 0.5
per 1000 units ≈ kg 0.295 0.344 0.66

Thread Size
d		 M1.6 M2 M2.5
P Pitch 0.35 0.4 0.45
c ≈ ① ① 0.3
dk Nominal Size 7.5 9 11
max 7.79 9.29 11.35
min 7.21 8.71 10.65
ds max=nominal size 3.8 4.5 5
min 3.5 4.2 4.7
h max=nominal size 2.5 2.5 3
min 2.25 2.25 2.75
k max=nominal size 2 2 2.5
min 1.75 1.75 2.25
r 0.5 0.5 0.5
Knurling division 0.5 0.5 0.6
per 1000 units ≈ kg 0.75 1.02 1.9

Thread Size
d		 M3 M4 M5
P Pitch 0.5 0.7 0.8
c ≈ 0.3 0.4 0.4
dk Nominal Size 12 16 20
max 12.35 16.35 20.42
min 11.65 15.65 19.58
ds max=nominal size 6 8 10
min 5.7 7.64 9.64
h max=nominal size 3 4 5
min 2.75 3.7 4.7
k max=nominal size 2.5 3.5 4
min 2.25 3.2 3.7
r 0.5 0.5 1
Knurling division 0.6 0.6 0.6
per 1000 units ≈ kg 2.2 5.41 9.86

Thread Size
d		 M6 M8 M10
P Pitch 1 1.25 1.5
c ≈ 0.5 0.6 0.8
dk Nominal Size 24 30 36
max 24.42 30.42 36.5
min 23.58 29.58 35.5
ds max=nominal size 12 16 20
min 11.57 15.57 19.48
h max=nominal size 6 8 10
min 5.7 7.64 9.64
k max=nominal size 5 6 8
min 4.7 5.7 7.64
r 1 2 2
Knurling division 0.6 0.6 0.8
per 1000 units ≈ kg 17.6 33.9 63.8



All information is strictly informative
