DIN 417

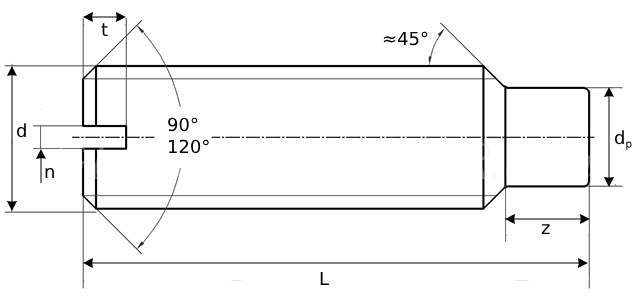

Slotted set screws with long dog point

tech-din417






Screw Thread
d		 M1.6 M2 M2.5
P Pitch 0.35 0.4 0.45
dp max=nominal size 0.8 1 1.5
min 0.55 0.75 1.25
n max 0.45 0.45 0.6
min 0.31 0.31 0.46
t min=nominal size 0.56 0.64 0.72
max 0.74 0.84 0.95
z max 1.05 1.25 1.5
min=nominal size 0.8 1 1.25

Screw Thread
d		 M3 (M3.5) M4
P Pitch 0.5 0.6 0.7
dp max=nominal size 2 2.2 2.5
min 1.75 1.95 2.25
n max 0.6 0.7 0.8
min 0.46 0.56 0.66
t min=nominal size 0.8 0.96 1.12
max 1.05 1.21 1.42
z max 1.75 2 2.25
min=nominal size 1.5 1.75 2

Screw Thread
d		 M5 M6 M8
P Pitch 0.8 1 1.25
dp max=nominal size 3.5 4 5.5
min 3.2 3.7 5.2
n max 1 1.2 1.51
min 0.86 1.06 1.26
t min=nominal size 1.28 1.6 2
max 1.63 2 2.5
z max 2.75 3.25 4.3
min=nominal size 2.5 3 4

Screw Thread
d		 M10 M12
P Pitch 1.5 1.75
dp max=nominal size 7 8.5
min 6.64 8.14
n max 1.91 2.31
min 1.66 2.06
t min=nominal size 2.4 2.8
max 3 3.6
z max 5.3 6.3
min=nominal size 5 6
