DIN 196 Specifications

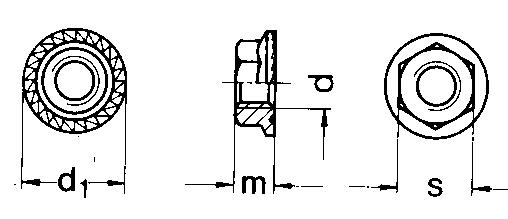

DIN196 Hex Flange Lock Nut With Knurled washer-product drawing-d1=flange dia.,m=thickness, s=waf,d=dia.

All measurements in millimeters (mm)

d d1 s m
M5 11.2 8 4.3
M6 14.25 10 5.5
M8 18.25 13 7
M10 21 15 7.9
M12 24 17 8.7
M16 31 22 11.5

All information is strictly informative
