DIN 1469

Grooved Pins, Half Length Grooved With Gorge

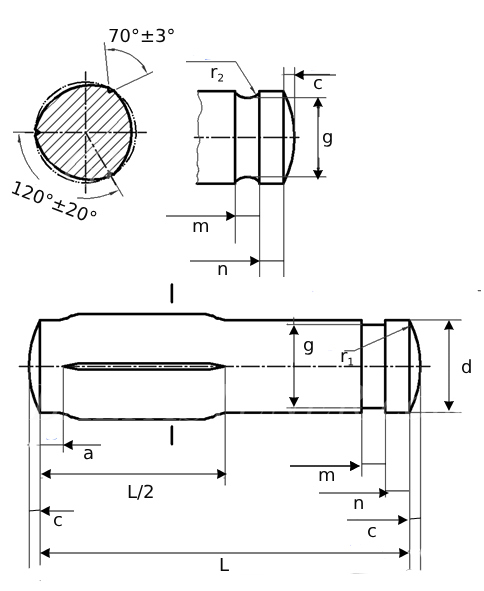

tech-din1469




Nominal Diameter
d		 Φ2 Φ2.5 Φ3 Φ4
d min 2 2.5 3 4
min 1.975 2.475 2.975 3.925
a max 1.7 2 2 2.4
min 0.7 1 1 1.4
c ≈ 0.25 0.3 0.4 0.5
g Type A max - - 2.8 3.8
min - - 2.74 3.725
m Type A min - - 0.5 0.5
max - - 0.64 0.64
g Type B max 1.5 1.9 2.3 3.2
min 1.44 1.84 2.24 3.125
m Type B max 0.46 0.56 0.67 0.67
min 0.44 0.54 0.64 0.64
g Type C 1 1.2 1.5 2.4
m Type C Nominal Size（±1/2 IT14） 0.8 0.8 1 1.4
max 0.925 0.925 1.125 1.525
min 0.675 0.675 0.875 1.275
r2 Type C 0.4 0.4 0.5 0.7
n 0.8 0.8 1 1.4
Minimum Double Shear,kN 2.85 4.25 6.15 10.6

Nominal Diameter
d		 Φ5 Φ6 Φ8
d min 5 6 8
min 4.925 5.925 7.91
a max 2.5 3 3
min 1.5 2 2
c ≈ 0.6 0.8 1
g Type A max 4.8 5.7 7.6
min 4.725 5.625 7.51
m Type A min 0.7 0.8 0.9
max 0.84 0.94 1.04
g Type B max 4 5 7
min 3.925 4.925 6.91
m Type B max 0.77 0.77 0.97
min 0.74 0.74 0.94
g Type C 2.8 3.8 5
m Type C Nominal Size（±1/2 IT14） 1.6 1.6 2
max 1.725 1.725 2.125
min 1.475 1.475 1.875
r2 Type C 0.8 0.8 1
n 1.6 1.6 2
Minimum Double Shear,kN 16.5 22.8 40.5

Nominal Diameter
d		 Φ10 Φ12 Φ14
d min 10 12 14
min 9.91 11.89 13.89
a max 3.5 3.5 3.5
min 2.5 2.5 2.5
c ≈ 1.2 1.6 1.6
g Type A max 9.6 11.5 13.4
min 9.51 11.39 13.29
m Type A min 1.1 1.1 1.1
max 1.24 1.24 1.24
g Type B max 9 10 12
min 8.91 9.89 11.89
m Type B max 1.21 1.31 1.41
min 1.15 1.25 1.35
g Type C 6.8 8.2 9.6
m Type C Nominal Size（±1/2 IT14） 2.6 3 3
max 2.725 3.125 3.125
min 2.475 2.875 2.875
r2 Type C 1.3 1.5 1.5
n 2.6 3 3
Minimum Double Shear,kN 63.2 91 124

Nominal Diameter
d		 Φ16 Φ20 Φ25
d min 16 20 25
min 15.89 19.87 24.87
a max 3.5 4 4
min 2.5 3 3
c ≈ 2 2.5 3
g Type A max 15.2 19 23.9
min 15.09 18.87 23.77
m Type A min 1.1 1.3 1.3
max 1.24 1.44 1.44
g Type B max 15 19 24
min 14.89 18.89 23.87
m Type B max 1.61 1.86 2.11
min 1.55 1.8 2.05
g Type C 11 14 18
m Type C Nominal Size（±1/2 IT14） 4 5 6
max 4.15 5.15 6.15
min 3.85 4.85 5.85
r2 Type C 2 2.5 3
n 4 5 6
Minimum Double Shear,kN 156.8 236.5 370.1



All information is strictly informative
