V-COIL Thread Repair Workshop Metric
|
|||||||
|---|---|---|---|---|---|---|---|
| Part# | Size | Pitch | Product Casing | Stocked OnlyAll |
Description / Contents | ||
| TV20-19121 | M2 | 1.5 | Retainer Ring OS from copper (CU) and Aluminium (ALU) Plastic box | No(1-2weeks) |
V-COIL HexTap OS M 20 x 1.5 (Qty.1) (19005);V-COIL HexTap OS M 24 x 1.5 (Qty.1) (19006);Oil drain screw Type B. M 20 x 1.5 (Qty.5) (19133);Oil drain screw Type B. M 24 x 1.5 (Qty.5) (19134);Retainer Ring 20 x 24 x 1.5 mm (Qty.10);Retainer Ring 20 x 24 x 1.5 mm (Qty.10);Retainer Ring 24 x 29 x 2.0 mm (Qty.10);Retainer Ring 24 x 29 x 2.0 mm (Qty.10)
|
||

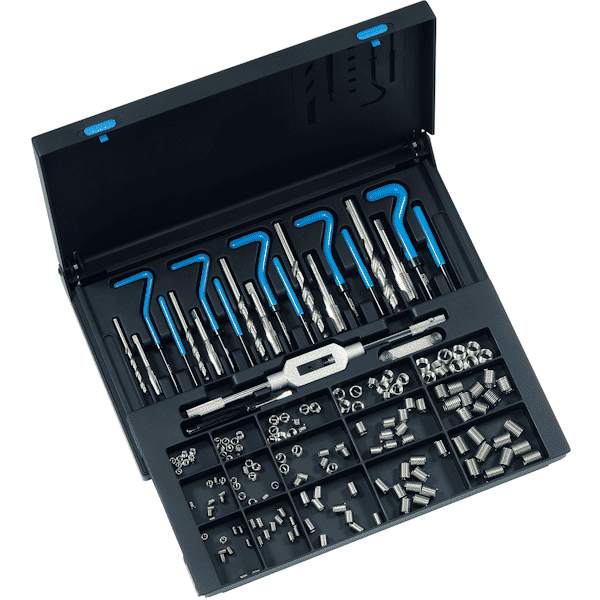

| TV20-04080 | M5 | 0 | Plastic box | No(1-2weeks) |
STI Twist Drill 5.2 mm (Qty.1) (00052);STI Twist Drill 6.3 mm (Qty.1) (00063);STI Twist Drill 8.3 mm (Qty.1) (00083);STI Twist Drill 10.4 mm (Qty.1) (00104);STI Twist Drill 12.4 mm (Qty.1) (00124);STI Short Machine Tap Form D - M 5 x 0.8 (Qty.1) (03008);STI Short Machine Tap Form D - M 6 x 1.0 (Qty.1) (03009);STI Short Machine Tap Form D - M 8 x 1.25 (Qty.1) (03011);STI Short Machine Tap Form D - M 10 x 1.5 (Qty.1) (03015);STI Short Machine Tap Form D - M 12 x 1.75 (Qty.1) (03020);Tang BreakTool No. 8 (Qty.1) (07008);Tang BreakTool No. 9 (Qty.1) (07009);Tang BreakTool No. 11 (Qty.1) (07011);Tang BreakTool No. 13 (Qty.1) (07013);Tang BreakTool No. 15 (Qty.1) (07015);Wire thread insert S M 5 x 0.8 - 1.0D (Qty.10) (07208);Wire thread insert S M 6 x 1.0 - 1.0D (Qty.10) (07209);Wire thread insert S M 8 x 1.25 - 1.0D (Qty.10) (07211);Wire thread insert S M 10 x 1.5 - 1.0D (Qty.10) (07215);Wire thread insert S M 12 x 1.75 - 1.0D (Qty.5) (07221);Wire thread insert S M 5 x 0.8 - 1.5D (Qty.10) (07308);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.10) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.10) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.10) (07315);Wire thread insert S M 12 x 1.75 - 1.5D (Qty.5) (07321);Wire thread insert S M 5 x 0.8 - 2.0D (Qty.10) (07408);Wire thread insert S M 6 x 1.0 - 2.0D (Qty.10) (07409);Wire thread insert S M 8 x 1.25 - 2.0D (Qty.10) (07411);Wire thread insert S M 10 x 1.5 - 2.0D (Qty.10) (07415);Wire thread insert S M 12 x 1.75 - 2.0D (Qty.5) (07421);Inserting tool V-COIL No. 8 (Qty.1) (08008);Inserting tool V-COIL No. 9 (Qty.1) (08009);Inserting tool V-COIL No. 11 (Qty.1) (08011);Inserting tool V-COIL No. 13 (Qty.1) (08013);Inserting tool V-COIL No. 15 (Qty.1) (08015);Adjustable Tap Wrench Gr. 2 (Qty.1) (13020);Screwdriver (Qty.1);Template (Qty.1)
|
||
| TV20-04081 | M5 | 0 | Plastic box | Yes |
STI Twist Drill 5.2 mm (Qty.1) (00052);STI Twist Drill 6.3 mm (Qty.1) (00063);STI Twist Drill 8.3 mm (Qty.1) (00083);STI Twist Drill 10.4 mm (Qty.1) (00104);STI Twist Drill 12.4 mm (Qty.1) (00124);STI Short Machine Tap Form D - M 5 x 0.8 (Qty.1) (03008);STI Short Machine Tap Form D - M 6 x 1.0 (Qty.1) (03009);STI Short Machine Tap Form D - M 8 x 1.25 (Qty.1) (03011);STI Short Machine Tap Form D - M 10 x 1.5 (Qty.1) (03015);STI Short Machine Tap Form D - M 12 x 1.75 (Qty.1) (03020);Tang BreakTool No. 8 (Qty.1) (07008);Tang BreakTool No. 9 (Qty.1) (07009);Tang BreakTool No. 11 (Qty.1) (07011);Tang BreakTool No. 13 (Qty.1) (07013);Tang BreakTool No. 15 (Qty.1) (07015);Wire thread insert S M 5 x 0.8 - 1.5D (Qty.25) (07308);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.25) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.25) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.25) (07315);Wire thread insert S M 12 x 1.75 - 1.5D (Qty.10) (07321);Inserting tool V-COIL No. 8 (Qty.1) (08008);Inserting tool V-COIL No. 9 (Qty.1) (08009);Inserting tool V-COIL No. 11 (Qty.1) (08011);Inserting tool V-COIL No. 13 (Qty.1) (08013);Inserting tool V-COIL No. 15 (Qty.1) (08015)
|
||

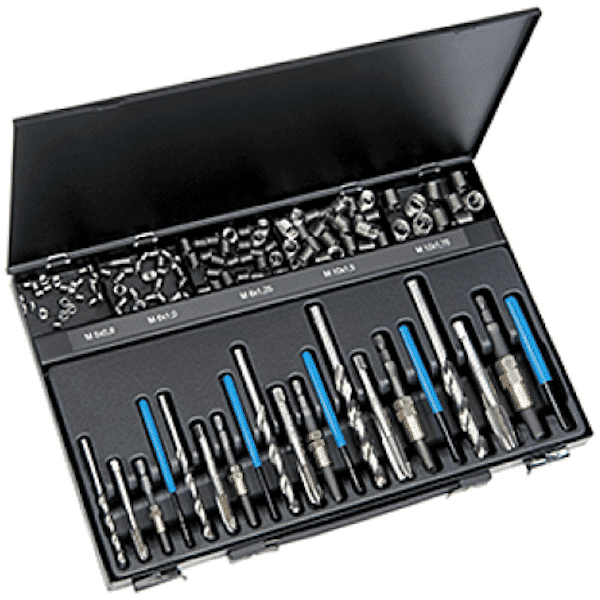

| TV20-04087 | M5 | 0 | Plastic box | No(1-2weeks) |
STI Twist Drill 5.2 mm (Qty.1) (00052);STI Twist Drill 6.3 mm (Qty.1) (00063);STI Twist Drill 8.3 mm (Qty.1) (00083);STI Twist Drill 10.4 mm (Qty.1) (00104);STI Twist Drill 12.4 mm (Qty.1) (00124);STI Machine Tap Spiral Point - M 5 x 0.8 (Qty.1) (03508);STI Machine Tap Spiral Point - M 6 x 1.0 (Qty.1) (03509);STI Machine Tap Spiral Point - M 8 x 1.25 (Qty.1) (03511);STI Machine Tap Spiral Point - M 10 x 1.5 (Qty.1) (03515);STI Machine Tap Spiral Point - M 12 x 1.75 (Qty.1) (03520);Tang BreakTool No. 8 (Qty.1) (07008);Tang BreakTool No. 9 (Qty.1) (07009);Tang BreakTool No. 11 (Qty.1) (07011);Tang BreakTool No. 13 (Qty.1) (07013);Tang BreakTool No. 15 (Qty.1) (07015);Wire thread insert S M 5 x 0.8 - 1.5D (Qty.25) (07308);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.25) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.25) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.25) (07315);Wire thread insert S M 12 x 1.75 - 1.5D (Qty.10) (07321);Inserting tool V-COIL M 5 x 0.8 (Qty.1) (08072);Inserting tool V-COIL M 6 x 1.0 (Qty.1) (08073);Inserting tool V-COIL M 8 x 1.25 (Qty.1) (08074);Inserting tool V-COIL M 10 x 1.5 (Qty.1) (08075);Inserting tool V-COIL M 12 x 1.75 (Qty.1) (08076)
|
||
| TV20-04381 | M5 | 0 | Plastic box | No(1-2weeks) |
V-COIL rapid STI Twist Drill 5.2 mm (Qty.1) (03083);V-COIL rapid STI Twist Drill 6.3 mm (Qty.1) (03084);V-COIL rapid STI Twist Drill 8.3 mm (Qty.1) (03085);V-COIL rapid STI Twist Drill 10.4 mm (Qty.1) (03086);V-COIL rapid STI Twist Drill 12.4 mm (Qty.1) (03087);STI HexTap V-COIL rapid machine tap Form D - M 5 x 0.8 (Qty.1) (03093);STI HexTap V-COIL rapid machine tap Form D - M 6 x 1.0 (Qty.1) (03094);STI HexTap V-COIL rapid machine tap Form D - M 8 x 1.25 (Qty.1) (03095);STI HexTap V-COIL rapid machine tap Form D - M 10 x 1.5 (Qty.1) (03096);STI HexTap V-COIL rapid machine tap Form D - M 12 x 1.75 (Qty.1) (03097);Tang Break Tool No. 8 (Qty.1) (07093);Tang Break Tool No. 9 (Qty.1) (07094);Tang Break Tool No. 11 (Qty.1) (07095);Tang Break Tool No. 13 (Qty.1) (07096);Tang Break Tool No. 15 (Qty.1) (07097);Wire thread insert S M 5 x 0.8 - 1.5D (Qty.10) (07308);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.10) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.10) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.10) (07315);Wire thread insert S M 12 x 1.75 - 1.5D (Qty.10) (07321);Inserting tool M 5 (Qty.1) (08093);Inserting tool M 6 (Qty.1) (08094);Inserting tool M 8 (Qty.1) (08095);Inserting tool M 10 (Qty.1) (08096);Inserting tool M 12 (Qty.1) (08097);Bit holder not magnetic (Qty.1)
|
||
| TV20-04085 | M6 | 0 | Plastic box | No(1-2weeks) |
STI Twist Drill 6.3 mm (Qty.1) (00063);STI Twist Drill 8.3 mm (Qty.1) (00083);STI Twist Drill 10.4 mm (Qty.1) (00104);STI Short Machine Tap Form D - M 6 x 1.0 (Qty.1) (03009);STI Short Machine Tap Form D - M 8 x 1.25 (Qty.1) (03011);STI Short Machine Tap Form D - M 10 x 1.5 (Qty.1) (03015);Tang BreakTool No. 9 (Qty.1) (07009);Tang BreakTool No. 11 (Qty.1) (07011);Tang BreakTool No. 13 (Qty.1) (07013);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.25) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.25) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.25) (07315);Inserting tool V-COIL No. 9 (Qty.1) (08009);Inserting tool V-COIL No. 11 (Qty.1) (08011);Inserting tool V-COIL No. 13 (Qty.1) (08013)
|
||
| TV20-04385 | M6 | 0 | Plastic box | No(1-2weeks) |
V-COIL rapid STI Twist Drill 6.3 mm (Qty.1) (03084);V-COIL rapid STI Twist Drill 8.3 mm (Qty.1) (03085);V-COIL rapid STI Twist Drill 10.4 mm (Qty.1) (03086);STI HexTap V-COIL rapid machine tap Form D - M 6 x 1.0 (Qty.1) (03094);STI HexTap V-COIL rapid machine tap Form D - M 8 x 1.25 (Qty.1) (03095);STI HexTap V-COIL rapid machine tap Form D - M 10 x 1.5 (Qty.1) (03096);Tang Break Tool No. 9 (Qty.1) (07094);Tang Break Tool No. 11 (Qty.1) (07095);Tang Break Tool No. 13 (Qty.1) (07096);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.10) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.10) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.10) (07315);Inserting tool M 6 (Qty.1) (08094);Inserting tool M 8 (Qty.1) (08095);Inserting tool M 10 (Qty.1) (08096);Bit holder not magnetic (Qty.1)
|
||
| TV20-04082 | M6 | 1.25 | Plastic box | No(1-2weeks) |
STI Twist Drill 6.3 mm (Qty.1) (00063);STI Twist Drill 8.3 mm (Qty.1) (00083);STI Twist Drill 10.4 mm (Qty.1) (00104);STI Twist Drill 12.4 mm (Qty.1) (00124);STI Short Machine Tap Form D - M 6 x 1.0 (Qty.1) (03009);STI Short Machine Tap Form D - M 8 x 1.25 (Qty.1) (03011);STI Short Machine Tap Form D - M 10 x 1.5 (Qty.1) (03015);STI Short Machine Tap Form D - M 12 x 1.75 (Qty.1) (03020);STI Short Machine Tap Form D - M 14 x 1.25 (Qty.1) (03029);Tang BreakTool No. 9 (Qty.1) (07009);Tang BreakTool No. 11 (Qty.1) (07011);Tang BreakTool No. 13 (Qty.1) (07013);Tang BreakTool No. 15 (Qty.1) (07015);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.25) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.25) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.25) (07315);Wire thread insert S M 12 x 1.75 - 1.5D (Qty.10) (07321);Wire thread insert S M 14 x 1.25 - 1.5D (Qty.10) (07327);Inserting tool V-COIL No. 9 (Qty.1) (08009);Inserting tool V-COIL No. 11 (Qty.1) (08011);Inserting tool V-COIL No. 13 (Qty.1) (08013);Inserting tool V-COIL No. 15 (Qty.1) (08015);Inserting tool V-COIL No. 17 (Qty.1) (08017)
|
||
| TV20-04083 | M6 | 1.25 | Plastic box | No(1-2weeks) |
STI Twist Drill 6.3 mm (Qty.1) (00063);STI Twist Drill 8.3 mm (Qty.1) (00083);STI Twist Drill 10.4 mm (Qty.1) (00104);STI Twist Drill 12.4 mm (Qty.1) (00124);STI Short Machine Tap Form D - M 6 x 1.0 (Qty.1) (03009);STI Short Machine Tap Form D - M 8 x 1.25 (Qty.1) (03011);STI Short Machine Tap Form D - M 10 x 1.5 (Qty.1) (03015);STI Short Machine Tap Form D - M 12 x 1.75 (Qty.1) (03020);STI Short Machine Tap M 14 x 1.25 (Qty.1) (03635);Tang BreakTool No. 9 (Qty.1) (07009);Tang BreakTool No. 11 (Qty.1) (07011);Tang BreakTool No. 13 (Qty.1) (07013);Tang BreakTool No. 15 (Qty.1) (07015);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.25) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.25) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.25) (07315);Wire thread insert S M 12 x 1.75 - 1.5D (Qty.10) (07321);Wire thread insert S M 14 x 1.25 - 1.5D (Qty.10) (07327);Inserting tool V-COIL No. 9 (Qty.1) (08009);Inserting tool V-COIL No. 11 (Qty.1) (08011);Inserting tool V-COIL No. 13 (Qty.1) (08013);Inserting tool V-COIL No. 15 (Qty.1) (08015);Inserting tool V-COIL No. 17 (Qty.1) (08017)
|
||
| TV20-04084 | M6 | 1.25 | Plastic box | No(1-2weeks) |
STI Twist Drill 6.3 mm (Qty.1) (00063);STI Twist Drill 8.3 mm (Qty.1) (00083);STI Twist Drill 10.4 mm (Qty.1) (00104);STI Twist Drill 12.4 mm (Qty.1) (00124);STI Short Machine Tap Form D - M 6 x 1.0 (Qty.1) (03009);STI Short Machine Tap Form D - M 8 x 1.25 (Qty.1) (03011);STI Short Machine Tap Form D - M 10 x 1.5 (Qty.1) (03015);STI Short Machine Tap Form D - M 12 x 1.75 (Qty.1) (03020);STI Short Machine Tap M 14 x 1.25 (Qty.1) (03635);Tang BreakTool No. 9 (Qty.1) (07009);Tang BreakTool No. 11 (Qty.1) (07011);Tang BreakTool No. 13 (Qty.1) (07013);Tang BreakTool No. 15 (Qty.1) (07015);Wire thread insert S M 14 x 1.25 - 8.40mm (Qty.5) (07128);Wire thread insert S M 14 x 1.25 - 12.40mm (Qty.5) (07228);Wire thread insert S M 6 x 1.0 - 1.5D (Qty.25) (07309);Wire thread insert S M 8 x 1.25 - 1.5D (Qty.25) (07311);Wire thread insert S M 10 x 1.5 - 1.5D (Qty.25) (07315);Wire thread insert S M 12 x 1.75 - 1.5D (Qty.10) (07321);Wire thread insert S M 14 x 1.25 - 16.40mm (Qty.5) (07328);Inserting tool V-COIL No. 9 (Qty.1) (08009);Inserting tool V-COIL No. 11 (Qty.1) (08011);Inserting tool V-COIL No. 13 (Qty.1) (08013);Inserting tool V-COIL No. 15 (Qty.1) (08015);Inserting tool V-COIL No. 17 (Qty.1) (08017)
|
||
| TV20-19120 | M13 | 1.5 | Diameter 13 x 1.5 15 x 1.5 17 x 1.5 Retainer Rings OS aus Copper (CU) and Aluminiu(ALU) | No(1-2weeks) |
V-COIL HexTap OS M 13 x 1.5 (Qty 1)(19002);V-COIL HexTap OS M 15 x 1.5 (Qty 1)(19003);V-COIL HexTap OS M 17 x 1.5 (Qty 1)(19004);Screws OS M 13 x 1.5 (Qty 5);Screws OS M 15 x 1.5 (Qty 5);Screws OS M 17 x 1.5 (Qty 5);Sealing Rings 15 x 19 x 1.5 mm (Qty 10);Sealing Rings 15 x 19 x 1.5 mm (Qty 10);Sealing Rings 17 x 21 x 1.5 mm (Qty 10);
|
||
| TV20-19122 | M13 | 1.5 | Retainer Ring OS from copper (CU) and Aluminium (ALU) Plastic box | No(1-2weeks) |
V-COIL HexTap OS M 13 x 1.5 (Qty.1) (19002);V-COIL HexTap OS M 15 x 1.5 (Qty.1) (19003);V-COIL HexTap OS M 17 x 1.5 (Qty.1) (19004);V-COIL HexTap OS M 20 x 1.5 (Qty.1) (19005);V-COIL HexTap OS M 24 x 1.5 (Qty.1) (19006);Oil drain screw Type A. M 13 x 1.5 (Qty.3) (19130);Oil drain screw Type A. M 15 x 1.5 (Qty.3) (19131);Oil drain screw Type B. M 17 x 1.5 (Qty.3) (19132);Oil drain screw Type B. M 20 x 1.5 (Qty.3) (19133);Oil drain screw Type B. M 24 x 1.5 (Qty.3) (19134);Retainer Ring 15 x 19 x 1.5 mm (Qty.3);Retainer Ring 15 x 19 x 1.5 mm (Qty.3);Retainer Ring 17 x 21 x 1.5 mm (Qty.3);Retainer Ring 20 x 24 x 1.5 mm (Qty.3);Retainer Ring 20 x 24 x 1.5 mm (Qty.3);Retainer Ring 24 x 29 x 2.0 mm (Qty.3);Retainer Ring 24 x 29 x 2.0 mm (Qty.3)
|
||
