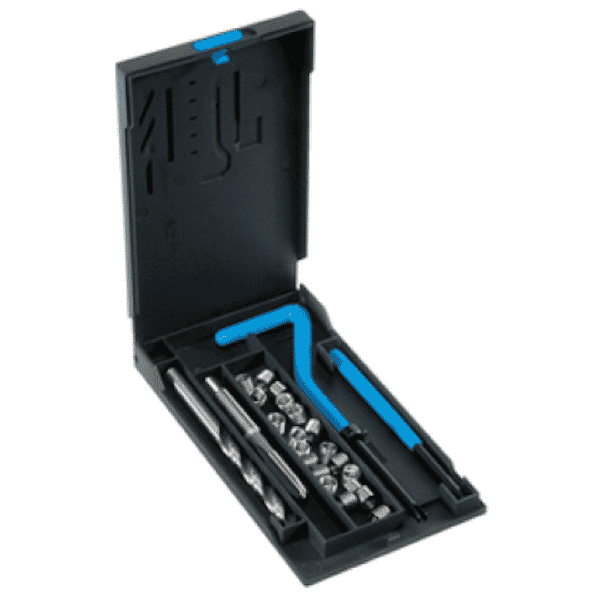

V-COIL Thread Repair Kits BSW

V-COIL Thread Repair Kits BSW
Part# Size Pitch Product Casing Stocked
OnlyAll 		Description / Contents
TV20-04141 BSW 1/8 40 Plastic box No(1-2weeks)
W 1/8x40 - 1.5D V-COIL Thread Repair Kit BSW

STI Twist Drill 3.4 mm (Qty.1) (00034);STI Short Machine Tap Form D - BSW 1/8 (Qty.1) (03201);Tang BreakTool No. 4 (Qty.1) (07004);Inserting tool V-COIL No. 4 (Qty.1) (08004);Wire thread insert S BSW 1/8 - 1.5D (Qty.20) (08341)
TV20-04142 BSW 3/16 24 Plastic box No(1-2weeks)
W 3/16x24 - 1.5D V-COIL Thread Repair Kit BSW

STI Twist Drill 5.0 mm (Qty.1) (00050);STI Short Machine Tap Form D - BSW 3/16 (Qty.1) (03202);Tang BreakTool No. 8 (Qty.1) (07008);Inserting tool V-COIL No. 7 (Qty.1) (08007);Wire thread insert S BSW 3/16 - 1.5D (Qty.20) (08342)
TV20-04162 BSF 3/16 32 Plastic box No(1-2weeks)
BSF 3/16x32 - 1.5D V-COIL Thread Repair Kit

STI Twist Drill 5.0 mm (Qty.1) (00050);STI Short Machine Tap Form D - BSF 3/16 (Qty.1) (03251);Tang BreakTool No. 8 (Qty.1) (07008);Inserting tool V-COIL No. 7 (Qty.1) (08007);Wire thread insert S BSF 3/16 - 1.5D (Qty.20) (08362)
TV20-04143 BSW 1/4 20 Plastic box No(1-2weeks)
W 1/4x20 - 1.5D V-COIL Thread Repair Kit BSW

STI Twist Drill 6.7 mm (Qty.1) (00067);STI Short Machine Tap Form D - BSW 1/4 (Qty.1) (03203);Tang BreakTool No. 9 (Qty.1) (07009);Inserting tool V-COIL No. 9 (Qty.1) (08009);Wire thread insert S BSW 1/4 - 1.5D (Qty.20) (08343)
TV20-04163 BSF 1/4 26 Plastic box No(1-2weeks)
BSF 1/4x26 - 1.5D V-COIL Thread Repair Kit

STI Twist Drill 6.6 mm (Qty.1) (00066);STI Short Machine Tap Form D - BSF 1/4 (Qty.1) (03253);Tang BreakTool No. 9 (Qty.1) (07009);Inserting tool V-COIL No. 9 (Qty.1) (08009);Wire thread insert S BSF 1/4 - 1.5D (Qty.20) (08363)
TV20-04144 BSW 5/16 18 Plastic box No(1-2weeks)
W 5/16x18 - 1.5D V-COIL Thread Repair Kit BSW

STI Twist Drill 8.3 mm (Qty.1) (00083);STI Short Machine Tap Form D - BSW 5/16 (Qty.1) (03204);Tang BreakTool No. 11 (Qty.1) (07011);Inserting tool V-COIL No. 10 (Qty.1) (08010);Wire thread insert S BSW 5/16 - 1.5D (Qty.20) (08344)
TV20-04165 BSF 5/16 22 Plastic box No(1-2weeks)
BSF 5/16x22 - 1.5D V-COIL Thread Repair Kit

STI Twist Drill 8.3 mm (Qty.1) (00083);STI Short Machine Tap Form D - BSF 5/16 (Qty.1) (03255);Tang BreakTool No. 11 (Qty.1) (07011);Inserting tool V-COIL No. 11 (Qty.1) (08011);Wire thread insert S BSF 5/16 - 1.5D (Qty.20) (08365)
TV20-04145 BSW 3/8 16 Plastic box No(1-2weeks)
W 3/8x16 - 1.5D V-COIL Thread Repair Kit BSW

STI Twist Drill 9.9 mm (Qty.1) (00099);STI Short Machine Tap Form D - BSW 3/8 (Qty.1) (03205);Tang BreakTool No. 12 (Qty.1) (07012);Inserting tool V-COIL No. 12 (Qty.1) (08012);Wire thread insert S BSW 3/8 - 1.5D (Qty.15) (08345)
TV20-04166 BSF 3/8 20 Plastic box No(1-2weeks)
BSF 3/8x20 - 1.5D V-COIL Thread Repair Kit

STI Twist Drill 9.9 mm (Qty.1) (00099);STI Short Machine Tap Form D - BSF 3/8 (Qty.1) (03256);Tang BreakTool No. 13 (Qty.1) (07013);Inserting tool V-COIL No. 13 (Qty.1) (08013);Wire thread insert S BSF 3/8 - 1.5D (Qty.15) (08366)
TV20-04146 BSW 7/16 14 Plastic box No(1-2weeks)
W 7/16x14 - 1.5D V-COIL Thread Repair Kit BSW

STI Twist Drill 11.5 mm (Qty.1) (00115);STI Short Machine Tap Form D - BSW 7/16 (Qty.1) (03206);Tang BreakTool No. 14 (Qty.1) (07014);Inserting tool V-COIL No. 14 (Qty.1) (08014);Wire thread insert S BSW 7/16 - 1.5D (Qty.10) (08346)
TV20-04167 BSF 7/16 18 Plastic box No(1-2weeks)
BSF 7/16x18 - 1.5D V-COIL Thread Repair Kit

STI Twist Drill 11.5 mm (Qty.1) (00115);STI Short Machine Tap Form D - BSF 7/16 (Qty.1) (03257);Tang BreakTool No. 14 (Qty.1) (07014);Inserting tool V-COIL No. 14 (Qty.1) (08014);Wire thread insert S BSF 7/16 - 1.5D (Qty.10) (08367)
TV20-04147 BSW 1/2 12 Plastic box No(1-2weeks)
W 1/2x12 - 1.5D V-COIL Thread Repair Kit BSW

STI Twist Drill 13.0 mm (Qty.1) (00130);STI Short Machine Tap Form D - BSW 1/2 (Qty.1) (03207);Tang BreakTool No. 15 (Qty.1) (07015);Inserting tool V-COIL No. 15 (Qty.1) (08015);Wire thread insert S BSW 1/2 - 1.5D (Qty.10) (08347)
TV20-04168 BSF 1/2 16 Plastic box No(1-2weeks)
BSF 1/2x16 - 1.5D V-COIL Thread Repair Kit

STI Twist Drill 13.0 mm (Qty.1) (00130);STI Short Machine Tap Form D - BSF 1/2 (Qty.1) (03258);Tang BreakTool No. 15 (Qty.1) (07015);Inserting tool V-COIL No. 15 (Qty.1) (08015);Wire thread insert S BSF 1/2 - 1.5D (Qty.10) (08368)
TV20-04148 BSW 9/16 12 Metal case No(1-2weeks)
W 9/16x12 - 1.5D V-COIL Thread Repair Kit BSW

STI Short Machine Tap Form D - BSW 9/16 (Qty.1) (03208);Inserting tool V-COIL No. 16 (Qty.1) (08016);Wire thread insert S BSW 9/16 - 1.5D (Qty.10) (08348)
TV20-04169 BSF 9/16 16 Plastic box No(1-2weeks)
BSF 9/16x16 - 1.5D V-COIL Thread Repair Kit

STI Short Machine Tap Form D - BSF 9/16 (Qty.1) (03259);Inserting tool V-COIL No. 16 (Qty.1) (08016);Wire thread insert S BSF 9/16 - 1.5D (Qty.10) (08369)
TV20-04149 BSW 5/8 11 Metal case No(1-2weeks)
W 5/8x11 - 1.5D V-COIL Thread Repair Kit BSW

STI Short Machine Tap Form D - BSW 5/8 (Qty.1) (03209);Inserting tool V-COIL No. 18 (Qty.1) (08018);Wire thread insert S BSW 5/8 - 1.5D (Qty.10) (08349)
TV20-04170 BSF 5/8 14 Metal case No(1-2weeks)
BSF 5/8x14 - 1.5D V-COIL Thread Repair Kit

STI Short Machine Tap Form D - BSF 5/8 (Qty.1) (03260);Inserting tool V-COIL No. 18 (Qty.1) (08018);Wire thread insert S BSF 5/8 - 1.5D (Qty.10) (08370)
TV20-04150 BSW 3/4 10 Metal case No(1-2weeks)
W 3/4x10 - 1.5D V-COIL Thread Repair Kit BSW

STI Short Machine Tap Form D - BSW 3/4 (Qty.1) (03211);Inserting tool V-COIL No. 20 (Qty.1) (08020);Wire thread insert S BSW 3/4 - 1.5D (Qty.5) (08351)
TV20-04172 BSF 3/4 12 Metal case No(1-2weeks)
BSF 3/4x12 - 1.5D V-COIL Thread Repair Kit

STI Short Machine Tap Form D - BSF 3/4 (Qty.1) (03262);Inserting tool V-COIL No. 20 (Qty.1) (08020);Wire thread insert S BSF 3/4 - 1.5D (Qty.5) (08372)
TV20-04174 BSF 7/8 11 Metal case No(1-2weeks)
BSF 7/8x11 - 1.5D V-COIL Thread Repair Kit

STI Short Machine Tap Form D - BSF 7/8 (Qty.1) (03264);Inserting tool V-COIL No. 22 (Qty.1) (08022);Wire thread insert S BSF 7/8 - 1.5D (Qty.5) (08374)
TV20-04151 BSW 7/8 9 Metal case No(1-2weeks)
W 7/8x9 - 1.5D V-COIL Thread Repair Kit BSW

STI Short Machine Tap Form D - BSW 7/8 (Qty.1) (03212);Inserting tool V-COIL No. 22 (Qty.1) (08022);Wire thread insert S BSW 7/8 - 1.5D (Qty.5) (08353)
TV20-04176 BSF 1'' 10 Metal case No(1-2weeks)
BSF 1x10 - 1.5D V-COIL Thread Repair Kit

STI Short Machine Tap Form D - BSF 1" (Qty.1) (03265);Inserting tool V-COIL No. 23 (Qty.1) (08023);Wire thread insert S BSF 1" - 1.5D (Qty.4) (08376)
TV20-04152 BSW 1" 8 Metal case No(1-2weeks)
W 1"x8 - 1.5D V-COIL Thread Repair Kit BSW

STI Short Machine Tap Form D - BSW 1" (Qty.1) (03213);Inserting tool V-COIL No. 23 (Qty.1) (08023);Wire thread insert S BSW 1" - 1.5D (Qty.4) (08355)

All information is strictly informative
