Hex Shank Taps Imperial

Hex Shank Taps Imperial

line-drawing line-drawing

Selecting a Part# will display details in this section.

Use the Size dropdown to filter parts.

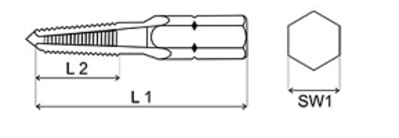

HexTaps UNC Type S Threading Bit 1/4 inch hexagon drive
Factory Standard HSS-G Tolerance 2B
Part & Description
Size
  • All
Pitch
Type
No.6-32 Hex Tap
TV01-67082
No.6
32
S1/4 inch
No.8-32 Hex Tap
TV01-67083
No.8
32
S1/4 inch
No.10 Hex Tap
TV01-67084
No.10
24
S1/4 inch
No.12 Hex Tap
TV01-67085
No.12
24
S1/4 inch
1/4-20 Hex Tap
TV01-67086
1/4 inch
20
S1/4 inch
5/16-18 Hex Tap
TV01-67087
5/16 inch
18
S1/4 inch
3/8-16 Hex Tap
TV01-67088
3/8 inch
16
S1/4 inch
HexTaps UNF Type S Threading Bit 1/4 inch hexagon drive
Factory Standard HSS-G Tolerance 2B
Part & Description
Size
  • All
Pitch
Type
No.10-32 Hex Tap
TV01-67094
No.10
32
S1/4 inch
1/4-28 Hex Tap
TV01-67096
1/4 inch
28
S1/4 inch
5/16 Hex Tap
TV01-67097
5/16 inch
24
S1/4 inch
3/8 Hex Tap
TV01-67098
3/8 inch
24
S1/4 inch

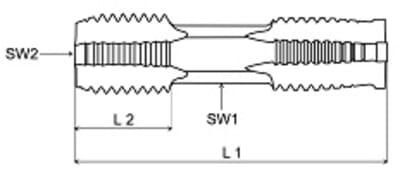

HexTaps UN Double ended
Factory Standard HSS-G Tolerance ISO2 (6H)
Part & Description
Size
  • All
Pitch
Type
1-8 Double End Hex Tap UN
TV01-67901
1 inch
8
Double ended
1.1/8-8 Double End Hex Tap UN
TV01-67902
1.1/8 inch
8
Double ended
1.1/4-8 Double End Hex Tap UN
TV01-67903
1.1/4 inch
8
Double ended
1.3/8-8 Double End Hex Tap UN
TV01-67904
1.3/8 inch
8
Double ended
1.1/2-8 Double End Hex Tap UN
TV01-67905
1.1/2 inch
8
Double ended
1.5/8-8 Double End Hex Tap UN
TV01-67906
1.5/8 inch
8
Double ended
1.3/4-8 Double End Hex Tap UN
TV01-67907
1.3/4 inch
8
Double ended
1.7/8-8 Double End Hex Tap UN
TV01-67908
1.7/8 inch
8
Double ended
2-8 Double End Hex Tap UN
TV01-67909
2 inch
8
Double ended

All Information is strictly informative
